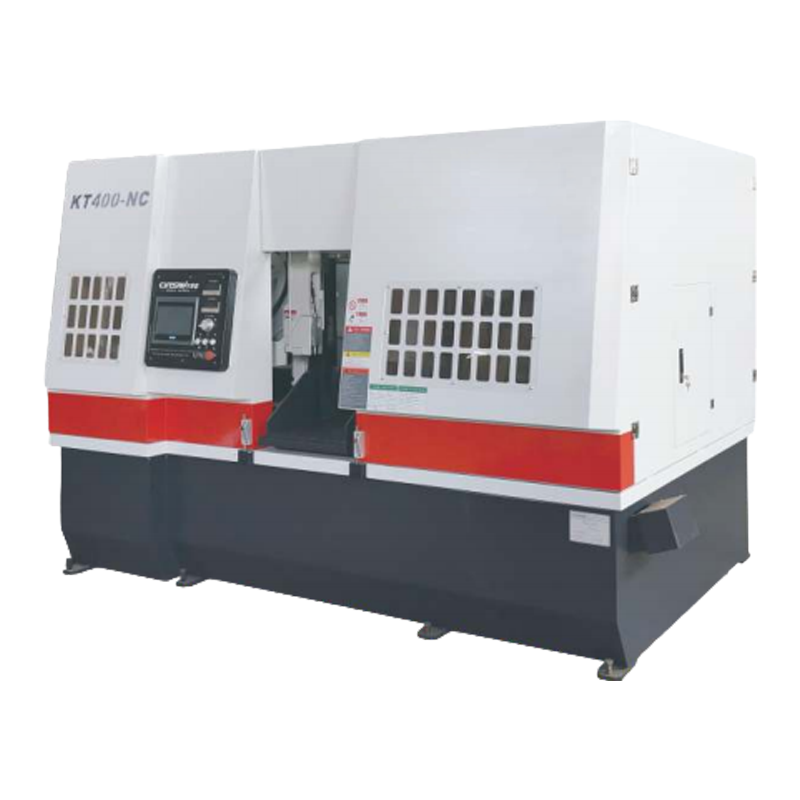

KT400 - NC Full-auto Band Saw Machine

Item/Model

KT400 - NC

Sawing capacity

Height: 400 Width: 400

Band saw blade speed

18-80 variable frequency stepless speed regulation

Band saw blade specifications

1.3×41×5830

Main motor

Y2/7.5-4

Hydraulic motor

0.75

Cooling pump

0.12

Height from the ground

760

Single fixed length size

400

Mechanical dimensions

3040*2040*2000

Clamping method

Hydraulic + double vise

Saw blade tensioning method

hydraulic

Feed adjustment method

Servo speed regulation

Size positioning method

Servo positioning

Hydraulic cooling method

Wind cooling air cooling

Chip removal method

Spiral automatic chip removal

NC language interface

1.3×41×5830
