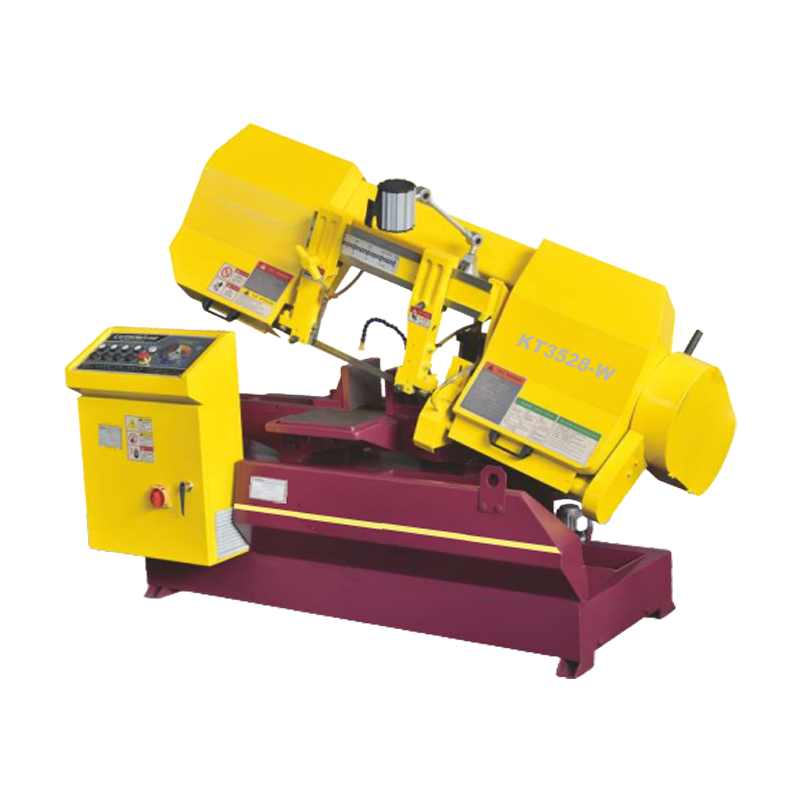

FKT3528 - W Semi-auto Band Saw Machine

Item/Model

KT 3528 - W

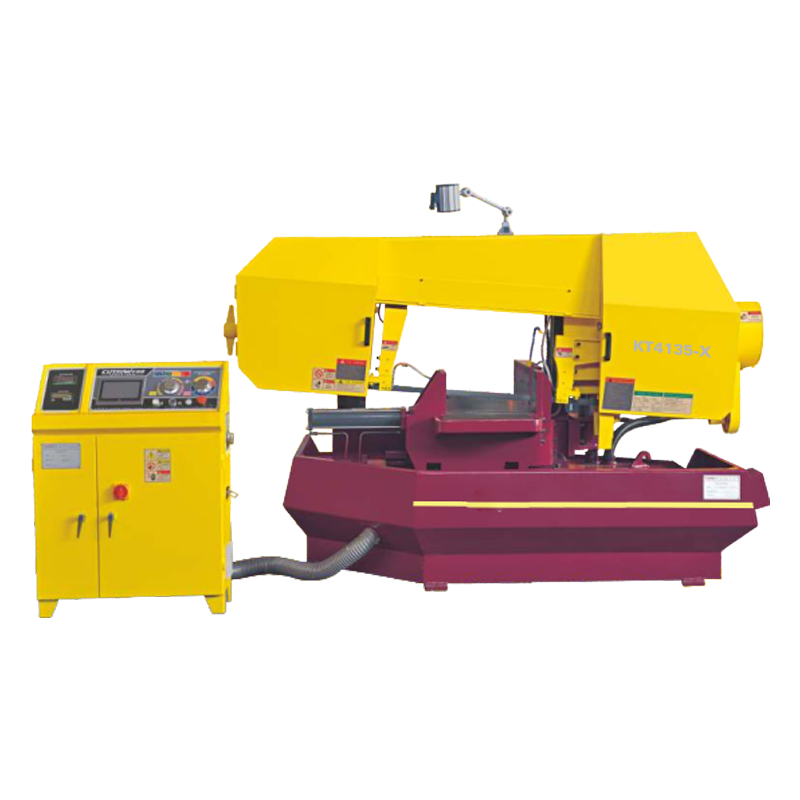

KT 4135 - X

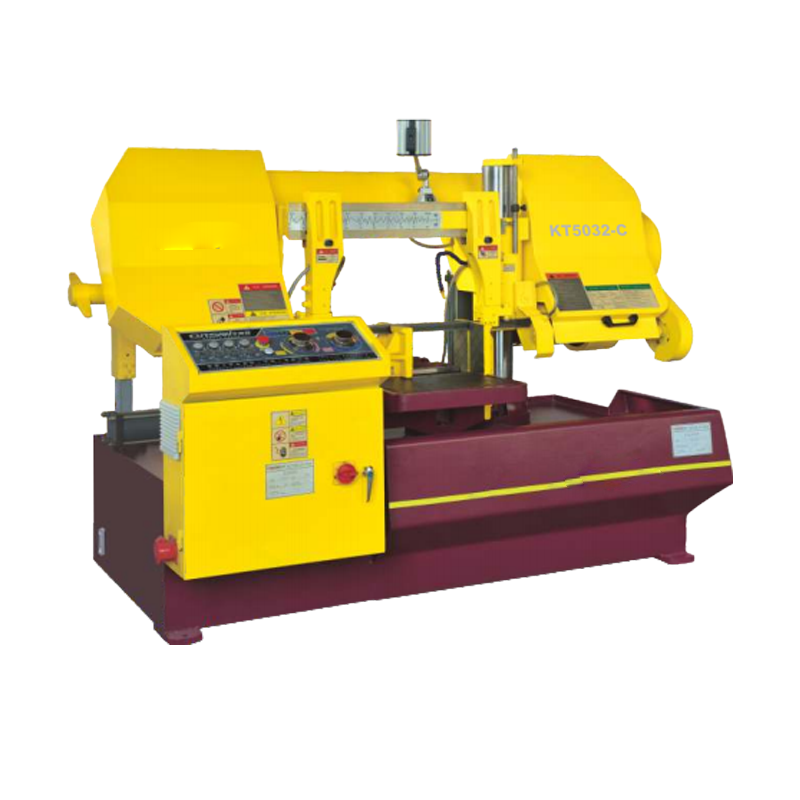

KT 5032-C

Sawing capacity

Height: 280 Width: 350

Height: 350 Width: 410

Height: 500 Width: 320

Band saw blade speed

20/35/50/65/80 five-speed transmission

18-80 variable frequency stepless speed regulation

30/45/60/80 four-speed transmission

Band saw blade specifications

0.9×27x3505

1.1x34×5140

1.1×34x4520mm

Main motor

Y2/224

Y24.0-4

Y23.0-6

Hydraulic motor

0.75

0.75

0.75

Cooling pump

0.04

0.09

0.04

Height from the ground

635

780

660

Mechanical dimensions

1880x1660x1250

2630*1780*1870

2280x1260x1450

Angle positioning method

-

Digital automatic positioning

-

Clamping method

hydraulic

hydraulic

hydraulic

Saw blade tensioning method

Manual

Manual

Manual

Feed adjustment method

Single valve speed regulation

Double valve speed regulation

Double valve speed regulation

Hydraulic cooling method

Air cooling

Air cooling

Air cooling

Chip removal method

Manual chip removal

Spiral automatic chip removal

Spiral automatic chip removal

NC language interface

Chinese and English

Chinese and English

Chinese and English
