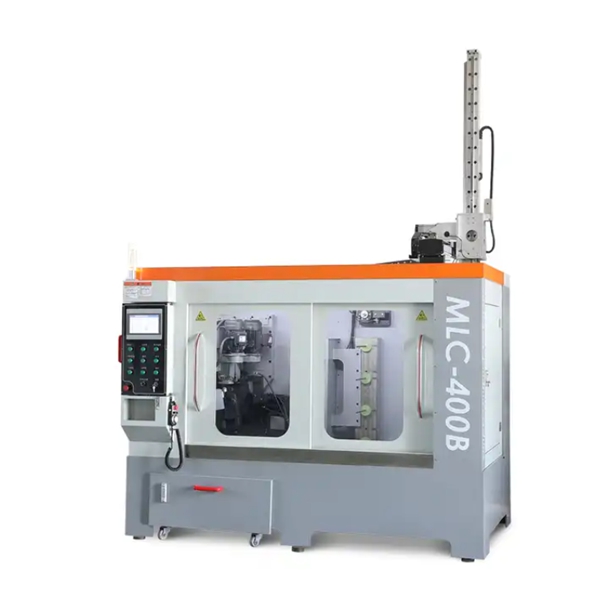

MLC-400B Fully automatic side angle grinding machine

● This machine adopts a special vertical grinding method with double grinding heads, both side angles of alloy tips are formed by one-time grinding. Various special tooth shapes can be ground, such as: left and right tooth, wide and narrow tooth etc..

● The machine is controlled by full bus servo PLC program, which can realize remote data monitoring and basic data acquisition. Centripetal angle of tooth side is interpolated ground, angle adjustment is flexible and easy. Circumferential angle of tooth side is also controlled by servo motor with high degree of automation. Variety of grinding modes are available, grinding wheel loss is compensated automatically according to actual loss value. Physical button and electronic handwheel combined to set the tool easily.

● This machine adopts a 3-axis truss manipulator to load/unload blades automatically, detect automatically, multi-blades error correct automatically, which makes the machine operate stable, positioning accurate, high efficient and labor saved, one worker could manage multiple equipments.

● The grinding mechanism is of modular design, main parts use cast iron with high rigidity and good stability. Adopts Taiwan Hiwin precision roller guide rail, Japan NSK precision bearing which make grinding accuracy ≤0.01mm.

● The guide rail drive module mechanism and electrical cabinet are closed at the back, which are completely separated from grinding and cutting fluid; electric lubrication pump is used to control oil supply; these prolongs service life of equipment.
