Saw blade diameters:⌀100-305mm
Tooth pitch:8-50mm
Grinding wheel: diamond wheel
Grinding speed:10-30(T/min)

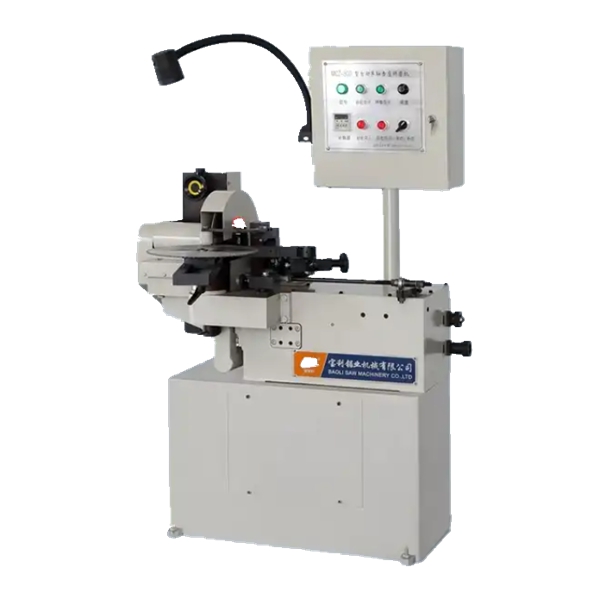

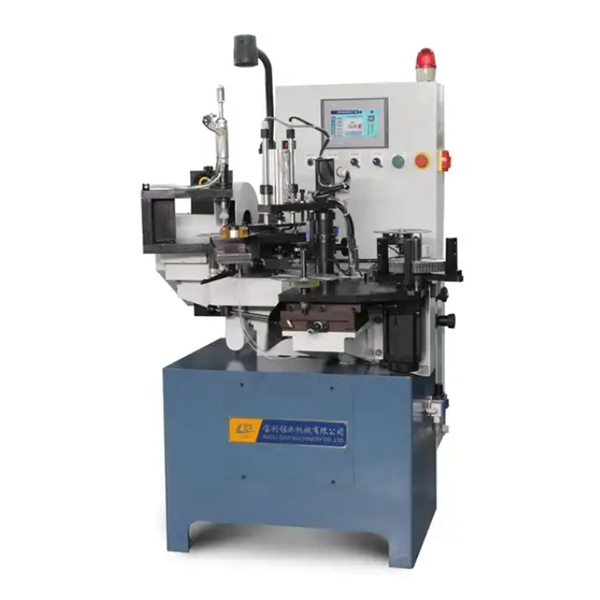

● This machine is a special equipment for the grinding of the base of the carbide circular saw blade.

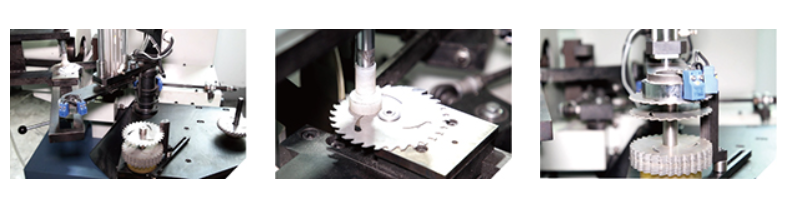

● This machine adopts robotic automatic clamping saw blade, and one person can operate 10-15 sets of equipment.
● This machine adopts a special mechanical transmission mechanism to ensure the consistency of the tooth feeding position and the grinding depth every time. It can correct the diameter jump generated during the base stamping to within 0.05mm, which greatly improves the static balance of the saw blade and improves the saw. The stability of the film.
● High efficiency, the class produces about 15,000 teeth.
|
NO |
Items |
Description |
|
1 |
Saw blade diameters |
⌀100-305mm |
|
2 |
Center arbor size |
⌀12-50mm ( custom available) |
|
3 |
Tooth pitch |
8-50mm |
|
4 |
Grinding speed |
10-30(T/min) |
|
5 |
Diamond wheel |
⌀255×⌀25.4×2-3mm(Electroplated diamond wheel) |
|
6 |
Total power |
2.35KW |
|
7 |
Power supply |
380V 50HZ,3phase |
|
8 |
Weight |
600KG |
|
9 |
Dimensions |
890×1060×1400mm |
