Blade diameter: ф100—ф500mm
Belt grit: 150# 180# 280#
Working air pressure: ≥0.5MPA

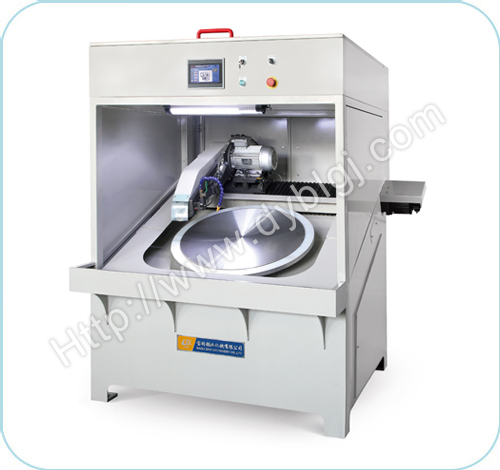

● This machine is a surface polishing equipment for the base of carbide circular saw blades, and can also be used for surface polishing of diamond saw blades.
● The automatic PLC program runs, the parameter setting is clear and clear, and the operation is convenient.
● The use of cutting fluid polishing reduces the heat generated during the grinding process, thus ensuring that the flatness of the saw blade is not affected.
● The grinding speed and the number of grinding can be adjusted by yourself.
● The machine is designed for automatic cutting and feeding, and the blasting line is designed with a delay setting function to make the polishing and sandblasting lines clear and consistent. One person can operate multiple machines, which greatly improves work efficiency.
Blade diameter |
ф100—ф500mm |
|
Arbor size |
ф10—ф50mm(Special specifications can be customized) |
|
Polishing speed |
Class production about 1500 tablets |
|
Belt size |
1230x34mm |
|
Belt grit |
150# 180# 280# |
|
Working air pressure |
≥0.5MPA |
|
Total power |
5.5KW |
|
Voltage |
380V(Three-phase four-wire) |
|
Weight |
950KG |
|
Dimensions |
|
