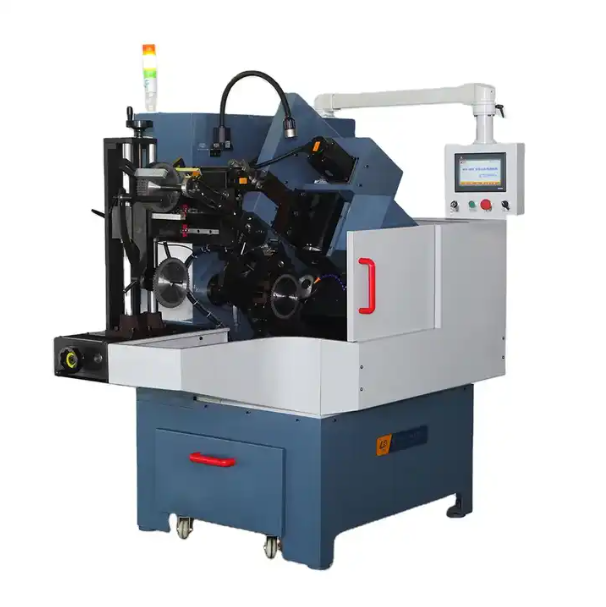

MLH-300J Full Automatic Back Angle Grinding Machine (Robot Arm)

Blade diameter : ф100—ф315mm
Back Angle : 0° — + 30°
Bevel angle : ±45°
Grinding precision : ≤0.02mm


● This machine is a special equipment for the corner grinding of professional grade carbide circular saw blades.

● Semi-enclosed environment-friendly design, robotic automatic clamping saw blade, one person can operate 10-15 sets of equipment.

● Micro-injection is implemented by Omron PLC and Mitsubishi servo motor. The amount of feed can be set. The equipment has good rigidity. It adopts the ball screw of the silver brand and the linear slide of precision grade. The vertical grinding precision is high, the grinding wheel loss is low, and the performance is low. Stable.

● It can complete all the tooth shape grinding in one time. It has various grinding programs with various tooth shapes. It is convenient to choose, including left and right teeth, left and right flat, left and right, left and right flat, ladder flat teeth, single helical teeth, N left M right, etc. One-piece grinding of the tooth shape.

● The most commonly used tooth profile programs for the left and right teeth and the flat teeth are optimized. The left teeth are completely ground and the right teeth are ground to reduce the turning time of the grinding head, improve the stability of the machine, and improve the work efficiency.

● The grinding wheel can realize the automatic compensation of the left and right teeth, ensuring the equal height of the left and right teeth, and also realizing the automatic compensation function of the grinding wheel wear, without manual feeding, which ensures the consistency of the product.

● Special tooth shape grinding can be set arbitrarily.





NO

Items

Description

1

Blade diameter

ф100—ф315mm

2

Arbor size

ф12—ф50mm

3

Tooth pitch

5—65mm

4

Back Angle

0° — + 30°

5

Bevel angle

±4

6

Grinding length

0—25mm

7

Grinding precision

≤0.02mm

8

Grinding speed

20 Teeth / minuteT/min

9

Diamond wheel

ф125xф20x5mm

10

Diamond wheel grit

220# 280#Recommended Use

11

Working air pressure

≥0.5Mpa

12

Total power

3KW

13

Weight

1300kg

14

Dimensions

1820X1875X1930mm
