Saw blade diameters：⌀100-355mm
Front Angle：-5°-+35°
Tooth Length：3.5-10mm
Tooth Width：1.5-8mm

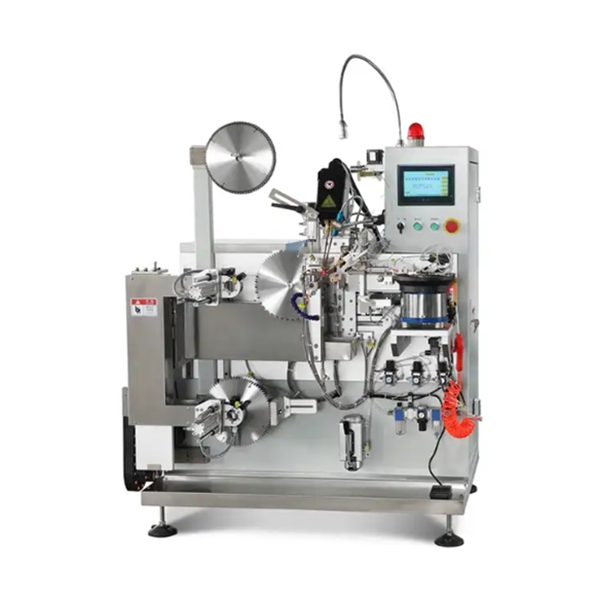

● This machine is a special equipment for automatic welding of carbide circular saw blade. It is designed for welding wire.
● The machine adopts manipulator to automatically clamp saw blades, one person can operate 10 sets of equipment.
● Automatic selection of teeth, dispensing, wire feeding, welding, tempering, welding quality stable and firm.
● Fine adjustment of automatic tempering function, adapt to various special requirements, left and right teeth automatic tool setting, one-time completion of welding, woodworking pieces, grass cutting pieces can be automatic welding. The device has added the function of automatic tooth dialing.
● The precision of temperature control is less than 1 ° , so the welding strength is guaranteed.
● Imported electrical components, advanced ultra-high frequency heating controller, small size, low energy consumption, high efficiency.
|
NO |
Items |
Dates |
|
1 |
Saw blade diameters |
⌀100-355mm |
|
2 |
Center arbor size |
⌀12-50mm ( custom available) |
|
3 |
Front Angle |
-5°-+35° |
|
4 |
Tooth Length |
3.5-10mm |
|
5 |
Tooth Width |
1.5-8mm |
|
6 |
Tooth thickness |
1.4-5mm |
|
7 |
Brazing speed |
650（Teeth/hour） |
|
8 |
Brazing precision |
≤0.05mm |
|
9 |
Brazing strength |
≥120MPA |
|
10 |
Power supply |
220V 50HZ |
|
11 |
Total power |
6.8KW |
|
12 |
High frequency output power |
6.5KW |
|
13 |
Working air pressure |
≥0.5MPA |
|
14 |
Working water pressure |
≥3.5kg/cm2 |
|
15 |
Weight |
280KG |
|
16 |
Dimensions |
1210×925×1500mm |
