Max Tooth pitch: 80mm
Front Angle: -5°-25°
Back angle: 0-25°
Front bevel angle土45°

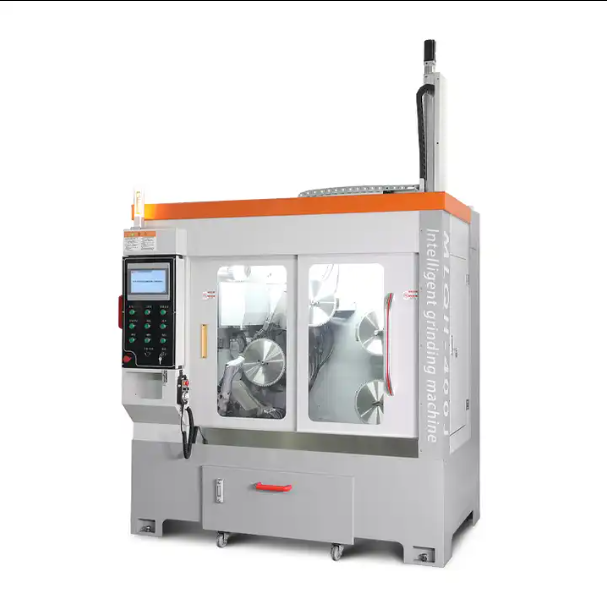

● This machine is designed as a grinding machine for both front and rear angles. It can be switched between the front and rear angles with one click, making the operation simple and practical.
● The back angle grinding program is designed with a special tooth shape free editing function. (Tooth shape editing can be saved.) Commonly used tooth shape selections can be quickly switched with one click, (such as: flat teeth, left and right teeth, left and right flat teeth, left and right flat teeth, ladder Combination tooth shapes such as flat teeth, unequal saw teeth, etc.)
● Quick grinding mode can be selected for commonly used tooth shapes, which saves the time of switching left and right rotation of the grinding wheel spindle and improves work efficiency. You can choose the quick grinding method for left and right teeth, ladder flat teeth, left and right flat teeth, etc.
● The grinding wheel loss is automatically compensated and can be set according to the actual loss. The grinding wheel loss compensation amount can be set independently for left teeth, right teeth, flat teeth and 45° chamfer angle, which avoids the problem of inaccurate compensation for grinding wheel loss at different angles. Improved the grinding accuracy of alloy saw teeth.
● This machine has a variety of grinding methods in the rake angle grinding state. You can choose the rapid rocking and step-by-step grinding method, or you can choose the multiple reciprocating step-by-step knife grinding method.
● The whole machine is controlled by bus servo PLC program, which can realize data remote control and basic data collection function. The physical buttons of the human-machine interface are combined with the electronic handwheel to easily set the tool, and the operation is simple.
● This machine uses a three-axis gantry manipulator to automatically load and unload saw blades, and is designed to automatically detect multiple blades and correct errors. It operates smoothly, has precise positioning, is highly efficient, saves labor, and can manage multiple pieces of equipment with one person.
● The grinding mechanism is modular in design, and all main components are made of cast iron, with high rigidity and good stability! Using Taiwan's Shangyin precision roller guide and Japan's NSK precision bearings, the grinding accuracy reaches ≤0.02MM.
● The guide rail transmission module mechanism and the electrical cabinet are rear-closed and completely isolated from the grinding and cutting fluid. An electric lubrication pump is used to program the oil supply to lubricate the guide rail, extending the service life of the equipment.
NO |
Items |
Parameters |
1 |
Max Tooth pitch |
80mm |
2 |
Grinding speed |
4-20 (T/min) |
3 |
Front Angle |
-5°-25° |
4 |
Back angle |
0-25° |
5 |
Front bevel angle |
土45° |
6 |
Back bevel angle |
土45° |
7 |
Grinding width |
1.5-12mm |
8 |
Diamond wheel |
ф32-ф125mm |
9 |
Diamond wheel grit |
180#-600# |
10 |
Working air pressure |
≥0.5Mpa |
11 |
Total power |
5KW |
12 |
Weight |
3500KG |
13 |
Dimensions |
1860*1352*2235mm |
