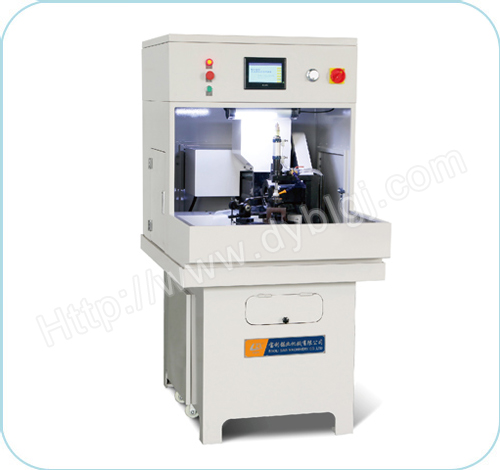

MLQ-650C Automatic Move-Working Face Angle Grinding Machine

Blade diameter: ф100—ф650mm
Tooth pitch:5—65mm
Front Angle: 0° — + 30°
Bevel angle: ±45°


● This machine is a special equipment for the grinding of the front angle of professional grade carbide circular saw blades.

● The OMRON PLC and Mitsubishi servo motor are used to realize the automatic micro-feed. The amount of the feed can be set, the grinding precision is high, and the grinding wheel loss is low.

● It can finish all tooth shape grinding at one time: including left and right teeth, left and right flat, left and right, left and right flat, single oblique tooth, N left M right and other tooth shapes.

● The left and right tooth programs are optimized. The left teeth are completely ground, and the right teeth are ground to reduce the turning time of the grinding head, improve the stability of the machine, and improve the work efficiency.

● The grinding wheel can realize the automatic compensation of the left and right teeth, ensuring the equal height of the left and right teeth, and also realizing the automatic compensation function of the grinding wheel wear, without manual feeding, which ensures the consistency of the product.


NO

Items

Description

1

Blade diameter

ф100—ф650mm

2

Arbor size

ф12—ф50mm (Special specifications can be customized)

3

Tooth pitch

5—65mm

4

Front Angle

0°  + 30°

5

Bevel angle

±4

6

Grinding length

0—25mm

7

Grinding precision

≤0.03mm

8

Grinding speed

20 Teeth / minuteT/min

9

Diamond wheel

ф125xф20x5mm

10

Diamond wheel grit

280# 220#Recommended Use

11

Working air pressure

≥0.5Mpa

12

Total power

2.5KW

13

Weight

900kg

14

Dimensions

1150X1000X1800mm
