Blade diameters: ф100—ф650mm
Radial angle: -5°— + 30°
Back Angle: -5°—5°
Perigon angle: 0—5°

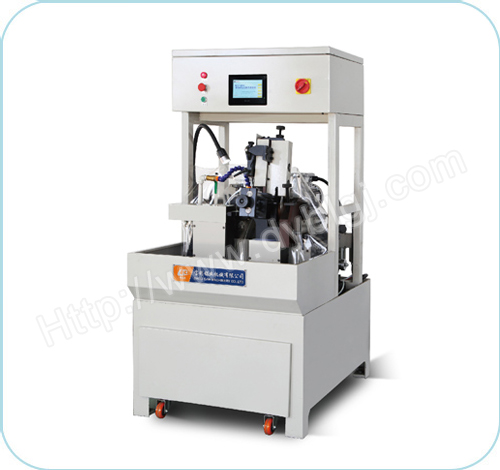

● This machine is a special equipment for the corner grinding of professional grade carbide circular saw blades.
● With Omron PLC, the program setting is flexible and diverse, the infeed position and the retracting position can be arbitrarily selected to achieve various grinding methods.
● Achieve a gradual micro-feed, the amount of feed can be set, the grinding precision is high, and the grinding wheel loss is low.
● Realizing the automatic compensation function, as long as the compensation amount is set properly, no manual feeding is required, which improves the accuracy of the product, and also reduces the difficulty and labor intensity of operation, and one person can operate multiple devices.
● The amount of grinding of special teeth can be set arbitrarily.
NO |
Items |
Description |
1 |
Blade diameter |
ф100—ф650mm |
2 |
Arbor size |
ф15—ф50mm |
3 |
Tooth pitch |
5—65mm |
4 |
Radial angle |
-5°— + 30° |
5 |
Back Angle |
-5°—5° |
6 |
Perigon angle |
0—5° |
7 |
Grinding edge width |
1.5-13mm(Side angle) |
8 |
Grinding edge thickness |
1.5—4mm |
9 |
Grinding edge length |
3—12mm |
10 |
Grinding precision |
≤0.03mm |
11 |
Grinding speed |
20 Teeth / minute(T/min) |
12 |
Diamond wheel |
ф100xф20x5mm |
13 |
Diamond wheel grit |
220# 280#(Recommended Use) |
14 |
Working air pressure |
≥0.5Mpa |
15 |
Total power |
2.2KW |
16 |
Weight |
900kg |
17 |
Dimensions |
840x1200x1760mm |
