Blade diameters: ф100—ф315mm （ф76—ф260mm）
Tooth pitch: 5-65mm
Front Angle: -5°—+30°
Radial Angle: -5°—5°

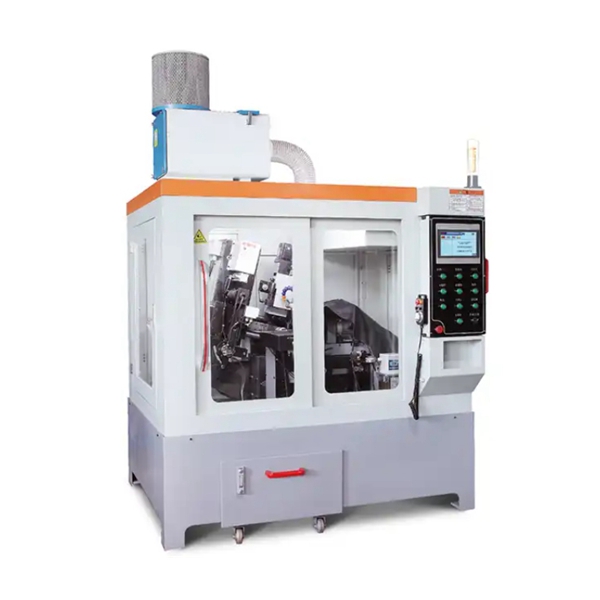

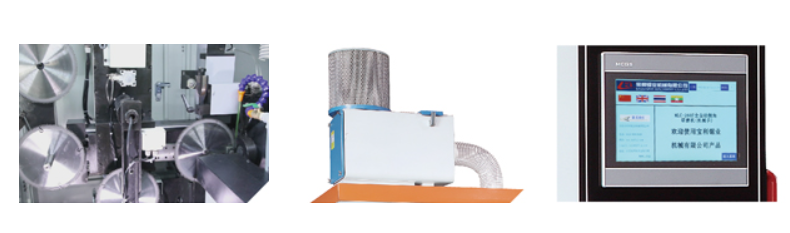

This machine is for professional level carbide saw blade face angle grinding.
● Adopts closed environmentally friendly design protection, the robot can load and unload blades automatically, so one person can operate 10-15 machines.
● Adopts OMRON PLC, Mitsubishi servo motor with excellent steel structure, feed rate can be set with micro feed function. Stable performance with hi-win brand ball screw and precision linear sliding rail, high vertical grinding accuracy.
● Complete all tooth geometry grinding at one time, with grinding programs commonly used for various tooth profiles, like flat tooth, ATB, ABTR etc..
● For ATB, TCG finish one side, then another side, the grinder just need to turn one time to save time and keep stable.
● Grinding wheel could be automatically compensated by suitable feed rate set, no need to do manual feed to ensure accuracy consistency.
● Grinding amount of special tooth shapes can be set arbitrarily
|
NO |
Items |
Description |
|
1 |
Blade diameters |
ф100—ф315mm （ф76—ф260mm） |
|
2 |
Arbor size |
ф12—ф50mm |
|
3 |
Tooth pitch |
5-65mm |
|
4 |
Front Angle |
-5°—+30° |
|
5 |
Radial Angle |
-5°—5° |
|
6 |
Circle angle |
0 —5° |
|
7 |
Grinding edge width |
1.5-13mm |
|
8 |
Grinding edge thickness |
1.5—4mm |
|
9 |
Grinding edge length |
3-12mm |
|
10 |
Grinding precision |
≤0.02mm |
|
|
Grinding Speed |
20 (T/min) |
|
11 |
Diamond wheel |
ф100xф20x4mm |
|
12 |
Diamond wheel grit |
220# 280#（Recommended ） |
|
13 |
Working air pressure |
≥0.5Mpa |
|
14 |
Total power |
3.5 KW |
|
15 |
Weight |
1796 KG |
|
16 |
Dimensions |
1805X1400X2603mm |
